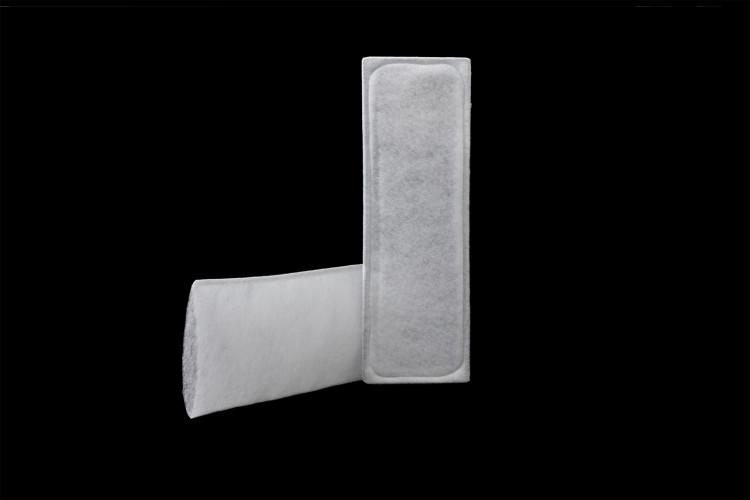

MD-220-filterdoek


Technical data

Product Filter mat
Medium Polyvester
Colour media White
Dimension ( width x length ) (m) 1 x 1
Material thickness approx. mm 24
Surface weight apporx. (g/m²) 220
Filter area (m²) 1
Filter class G4
Recommended nominal air flow (m³ /h) 5400
Air velocity (m/s) 1,5
Initial pressure drop (Pa) 35
Recommended final pressure drop (Pa) 250
Average arrestance (%) ≥90
Average efficiency (0,4 um) (%) -
Maximum humidity resistance (%) 100
Max. operating temperature (°C) 80
Labelling Filter class, type test


*flat sheet tested
