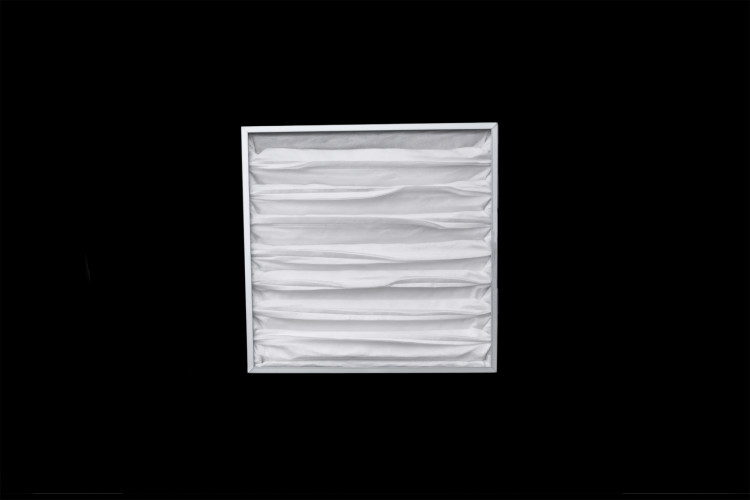

MDZ-95-filter


Description

  • Multifold Pocket Filter with single inserted bags with thread-shaped spacers
  • spacers and outer contours running conical over the bag length
  • pantented COMPOPLUS filter media from three-layer synthetic nonwoven made of electrical uncharged, organic synthetic microfibres ( PES, PP, EP 0687 195 B1)
  • frame designs of galvanized (TCCQ-) or reinforced (TCC-) steel sheet frame as well as black (TCCKUS-) or reinforced blue (TCCKU-) plastic frame, frame depth 20 or 25mm



Types

Article Size (WxHxD) Filter area Range of nominal airflow (100-125%)
TCC95/60/8/8 592x892x600 mm 9,2 m² 5000-6300 m³ /h
TCC95/60/8 592x592x600 mm 6,3 m² 3400-4300 m³ /h
TCC95/60/6 490x592x600 mm 4,8 m² 2800-3500 m³ /h
TCC95/60/4 287x592x600 mm 3,2 m² 1700-2100 m³ /h
TCC95/60/4A 287x287x600 mm 1,7 m² 850 - 1100 m³ /h

Different pocket lenghts, -numbrs and special sizes available.
