MDZ-65-filter
Description

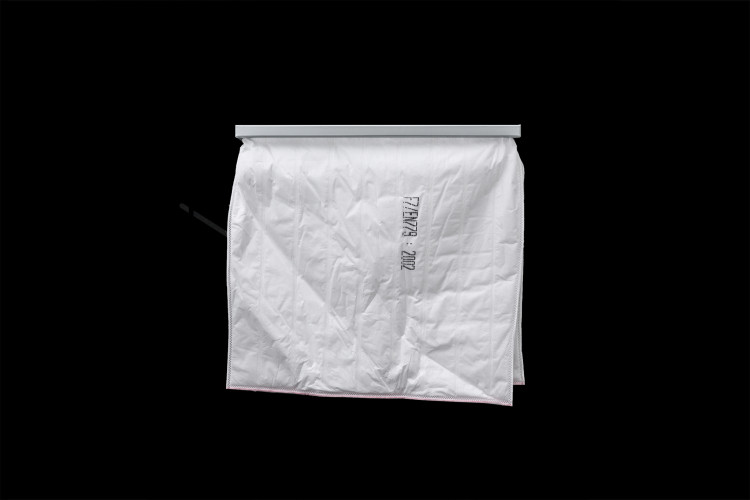

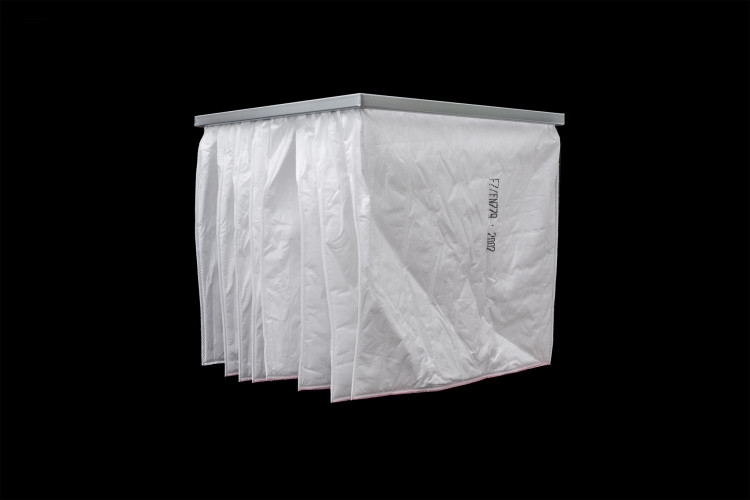

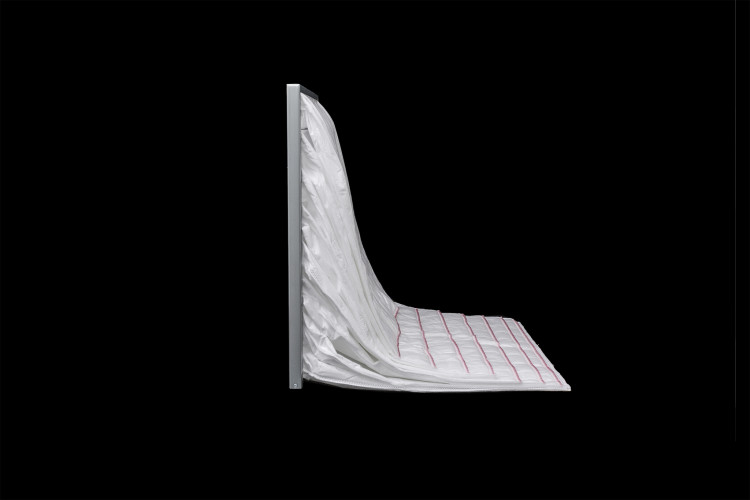

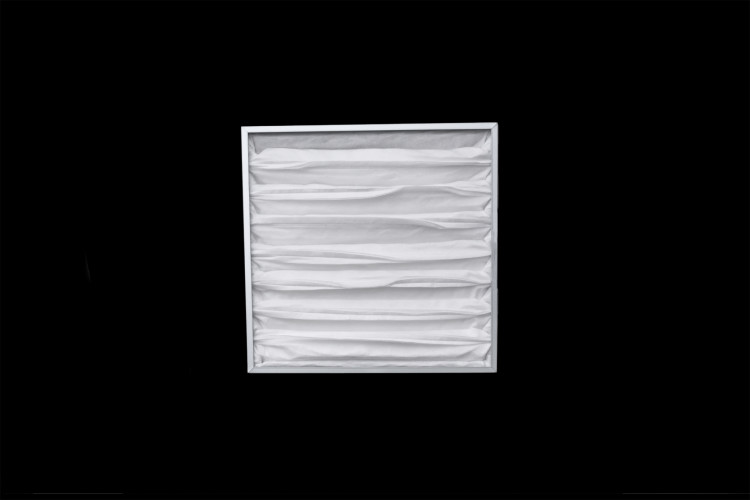

- Multifold Pocket Filter with single inserted bags ( see standard of perfection MULTIFOLD )
- Filter media consisting of a two-layer composite nonwoven made of electrical uncharged, organic synthetic microfibers ( PES )
- Filter media thermally bonded, without chemical binders
- dismountable construction ( plug system )
- separate recycling of media and header possible
- headers of metal, plastic or wooden design also available, frame depth 20 or 25 mm
Types
| Article | Size (WxHxD) | Filter area | Range of nominal airflow (100-125%) |
| TCC65/60/6/8 | 592x892x600 mm | 7,1 m² | 5000-6300 m³ /h |
| TCC65/60/6 | 592x592x600 mm | 4,9 m² | 3400-4300 m³ /h |
| TCC65/60/5 | 490x592x600 mm | 4,1 m² | 2800-3500 m³ /h |
| TCC65/60/3 | 287x592x600 mm | 2,4 m² | 1700-2100 m³ /h |
| TCC65/60/3A | 287x287x600 mm | 1,3 m² | 850 - 1100 m³ /h |
With different pocket lenghts, - numbers and special sizes available.
